Pleated Filter Media adopts the whole set, die-cutting, contour pleated, double-layer moisture-proof and high-temperature resistant cardboard frame plate structure design, compact structure, light and convenient.
Product Description
Excellent performance, solid structure and other high pleated design.
Imported high-quality fluffy filter material with large dust holding capacity and good general performance.

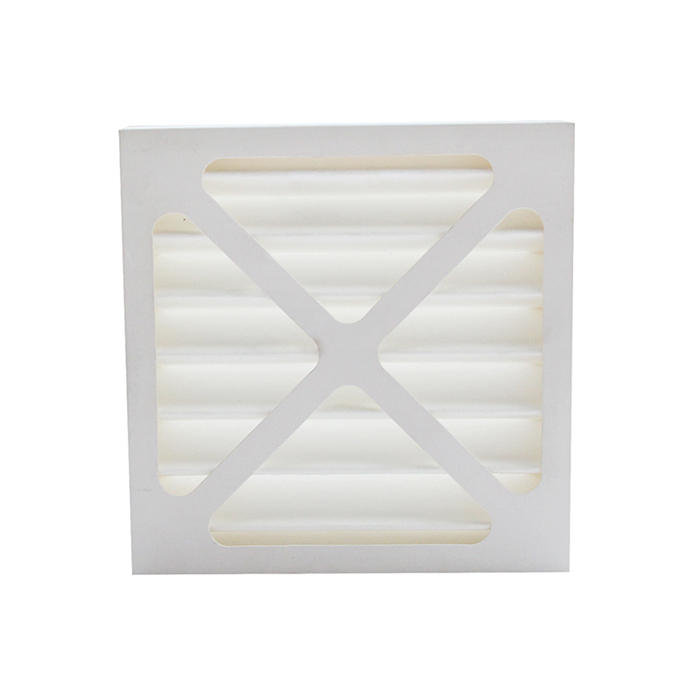

Pleated Filter Media adopts the whole set, die-cutting, contour pleated, double-layer moisture-proof and high-temperature resistant cardboard frame plate structure design, compact structure, light and convenient.
Pleated Filter Media is composed of a solid waterproof plate, which is used to fix the folded filter material. The diagonal design of the outer frame can provide a large filter area and make the inner filter material tightly adhere to the outer frame. The surrounding of the filter is bonded to the outer frame with special professional adhesive glue, which can prevent air leakage or damage caused by wind resistance pressure.
The outer frame of the disposable paper frame filter is generally divided into a general cardboard frame and a high-strength die-cut cardboard, and the filter element is a pleated fiber filter material lined with a single-sided wire mesh. Beautiful appearance. Sturdy and durable construction. Generally, the cardboard frame is used to manufacture non-standard filters, and can be used for the production of filters of any size. It has high strength and is not easy to deform. High-strength die-cut cardboard is used to manufacture standard-sized filters, which are characterized by high specification accuracy, aesthetics and low cost. If the imported fiber or synthetic fiber filter material is used, its various performance indicators can reach or exceed the imported filter.
Product Efficiency
G4(EN779)
If you want to know more information about primary filter, please contact Futai. We will provide professional answers.
performance code |
performance level |
Rated initial resistance |
|||||
300FPM/1.52m/s |
500FPM/2.54m/s inches of water |
Pa |
625FPM/3.18m/s |
||||
inches of water |
Pa |
inches of water |
Pa |
||||
DP30 2" |
excellent |
0.12 |
31 |
0.29 |
72 |
0.39 |
98 |
4" |
0.11 |
29 |
0.24 |
61 |
0.35 |
88 |
|
DP20 |
standard |
0.14 |
35 |
0.30 |
77 |
0.45 |
113 |
2" 4" |
0.12 |
33 |
0.26 |
65 |
0.37 |
93 |
|
DP10 |
economy |
0.15 |
38 |
0.32 |
80 |
0.47 |
117 |
2" 4" |
0.14 |
35 |
0.27 |
68 |
0.38 |
96 |
Remarks: The initial resistance tolerance of performance is ±10%.
Material table
Frame |
paper frame |
Frame optional thickness |
22mm/44mm/95mm |
filter media |
Blend of non-woven and synthetic fibers |
Specification
Nominal size |
Actual size |
Rated air volumem3/h |
DP30 |
DP20 |
DP10 |
|||||
(inch) |
(mm) |
at the following wind speeds |
Number of pleats |
filter paper area |
Number of pleats |
filter paper area |
Number of pleats |
filter paper area |
||
WxHxD |
WxHxD |
|
pleats |
㎡ |
pleats |
㎡ |
pleats |
㎡ |
||
12x24x1 |
288x591x22 |
1020 |
1700 |
- |
14 |
0.37 |
- |
- |
- |
- |
24x24x1 |
592x592x22 |
2040 |
3400 |
- |
28 |
0.74 |
- |
- |
- |
- |
12x24x2 |
288x591x44 |
1020 |
1700 |
2125 |
14 |
0.73 |
11 |
0.58 |
7 |
0.37 |
16x20x2 |
392x492x44 |
1050 |
1730 |
2200 |
18 |
0.78 |
14 |
0.61 |
10 |
0.44 |
16x24x2 |
390x591x44 |
1270 |
2090 |
2660 |
18 |
0.95 |
14 |
0.74 |
10 |
0.53 |
20x20x2 |
493x493x44 |
1445 |
2380 |
2980 |
23 |
1.01 |
17 |
0.74 |
12 |
0.52 |
20x24x2 |
493x592x44 |
1700 |
2800 |
3570 |
23 |
1.21 |
17 |
0.89 |
12 |
0.63 |
24x24x2 |
592x592x44 |
2040 |
3400 |
4250 |
28 |
1.47 |
22 |
1.15 |
15 |
0.79 |
12x24x4 |
292x592x95 |
1020 |
1700 |
2125 |
10 |
1.13 |
8 |
0.91 |
7 |
0.79 |
18x20x4 |
441x491x95 |
1150 |
1900 |
2400 |
19 |
1.77 |
14 |
1.31 |
10 |
0.93 |
20x24x4 |
493x592x95 |
1700 |
2800 |
3570 |
23 |
2.59 |
17 |
1.91 |
12 |
1.35 |
24x24x4 |
592x592x95 |
2040 |
3400 |
4250 |
21 |
2.37 |
18 |
2.03 |
15 |
1.70 |
25x25x4 |
620x620x95 |
2100 |
3460 |
4400 |
22 |
2.59 |
19 |
2.24 |
16 |
1.89 |
