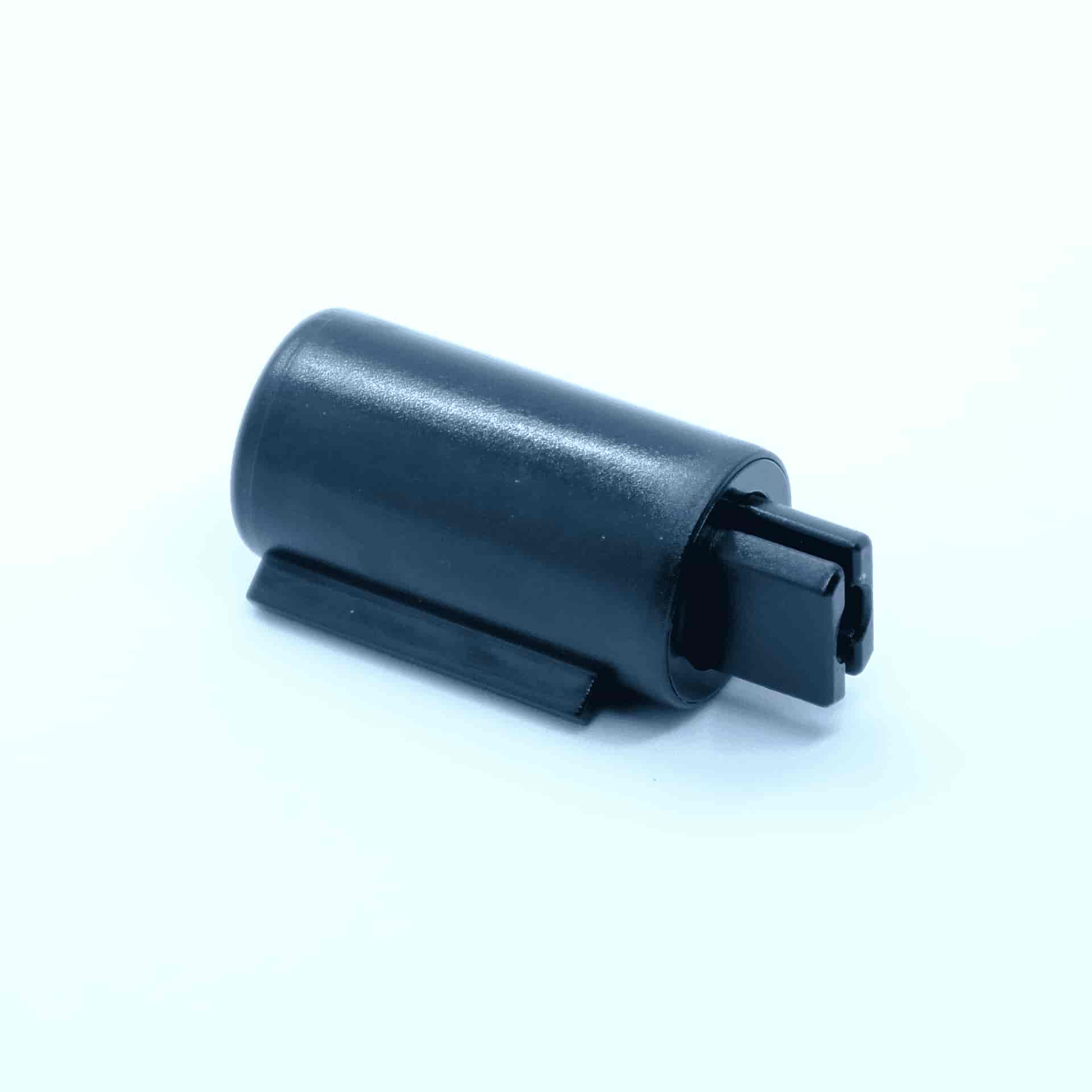

Axial/Barrel Damper RD-T012B

Axial dampers are ideal for components like safety handles and automotive door handles. Similar to gear dampers, they utilize the control of silicone oil viscosity and damping plate structure to achieve smooth motion. This makes operations of safety handles safer and more user-friendly, eliminating sudden slamming and vibrations.

Barrel Damper Component Parts

Less honorary seat: PC

Upper cover: PC

Rotor: POM

Gear: POM

O-RING: VMQ

Oil: silicone oil

Durability

Ambient temperature: normal temperature 23°

Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s

Lifetime: 30,000 times

Technical Specifications

Characteristic

Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

Temperature - torque characteristic (20r/min)

The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above. For more details please contact Teao
