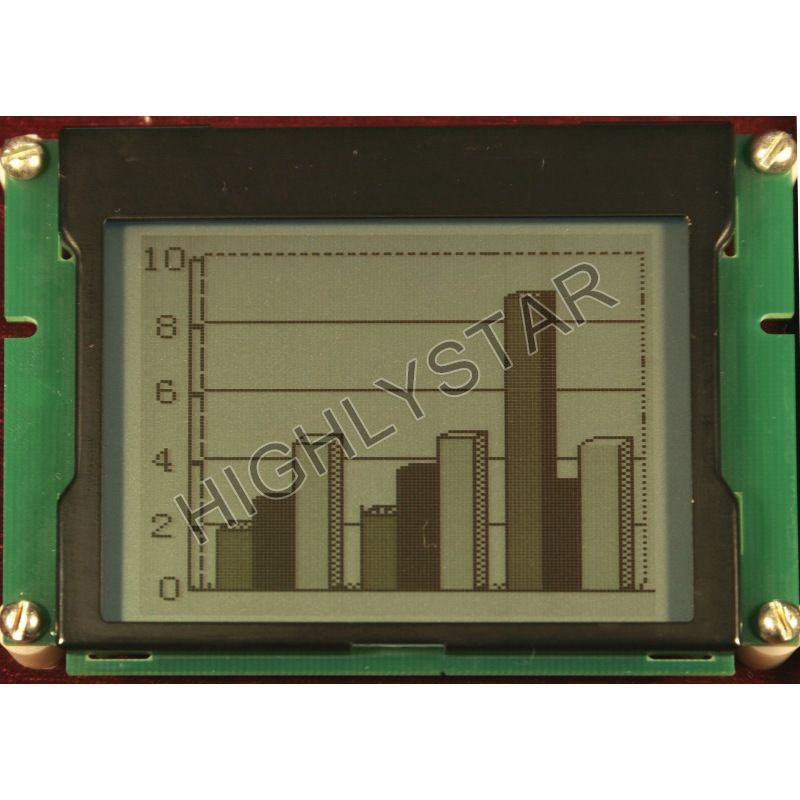

128×128 monochrome graphic LCD display module

Product Description



https://www.highlystarelec.com/products/hsg-1281286v6-graphic-lcd.html

Description

HSG-1281286V6 is a monochrome graphic LCD display module, which has 128×128 dots, Built-in with UC1617 controller IC or compatible controller. It supports an SPI interface, 3.3V power supply and DC-DC converter built in. The LED backlight's default color is white, There are different LED backlights available in various colors including blue, green, yellow-green and red.



The 128×128 monochrome graphic LCD display module is a small and cost-effective display solution for applications requiring basic graphics and text display. It is widely used in handheld devices, consumer electronics, and industrial control systems, offering clear and legible content with low power consumption.



Specifications

●128×128 dots

●Background: Gray

●backlight: LED, White

●Built-in controller UC1617 (or Equivalent)

●+3.3V power supply, DC-DC built-in

●1/128 duty cycle

●Interface: SPI

Features

This transreflective LCD display has been carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display utilizes its reflective layer to bounce ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays crisp graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.

Quality Standards

At Highlystar, we strive to provide our customers with the highest quality products every day. This means that the quality, engineering, and manufacturing teams work together to exceed your expectations.



Reliability Testing: Customers can expect all production components to meet or exceed operational requirements for temperature, humidity and vibration.



Glass Cleanliness: Customers can expect the glass to be protected by a liner with cleanliness standards in mind. This means that the glass will be free of contaminants, fingerprints and other foreign objects.



Bezel Appearance: Bezels will be uniformly painted and free of foreign matter and distracting cosmetic imperfections. Our standard is to keep the surface clean and free of scratches.



PCB Appearance: PCBs are delivered with long-term reliability in mind. The finish is free of air bubbles, foreign contaminants, and meets all UL fire protection requirements. PCB materials will always be delivered according to industry standards. PCB edges will be neatly cut and free of burrs.



Soldering: The soldering of all leads and SMT components is consistent in providing mechanical safety and electrical connections.



Consistency: Our manufacturing and inspection processes ensure product consistency from batch to batch. This means that orders processed over the years will consistently meet your expectations. We do this through strict manufacturing specifications, attention to process detail, and comparisons to gold units.



Product Integrity: The quality of product manufacturing ensures construction integrity. Customers can expect tight assembly without worrying about loose parts or missing materials. Our products will meet all environmental expectations, including temperature, humidity and vibration conditions.



Glass Color: While normal variations in glass color may occur (due to manufacturing tolerances), Highlystar maintains color compliance in accordance with internally approved color charts. These charts are maintained to ensure that any minor glass deviations are identified and corrected as needed.



ESD Protection and Safety: All equipment is designed and handled with ESD protection in mind. This includes ESD-SAFE packaging in anti-static bags, wraps and pallets. Customers are reminded to always follow ESD safety to best protect their equipment.
