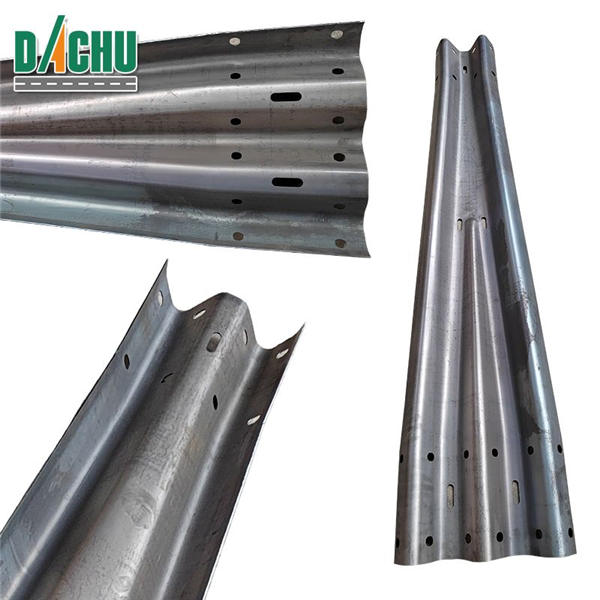

Highway Guardrail Transition Beam W beam To Thrie Beam

Thrie-Beam to W Beam Guardrail Barrier is a critical piece of equipment for road safety. It provides a smooth transition point between the guardrail and the road, allowing vehicles to pass safely and efficiently.Thrie-Beam to W Beam Guardrail Bar is available in several different standard lengths as well as a wide range of custom designed options to best suit the specific project requirements.

Thrie-Beam to W Beam Guardrail Barrier Transition is designed for use between guardrail posts and highway surfaces, providing a smooth transition between the two.

Specification Drawing for Thrie-Beam to W Beam Guardrail Barrier Transition

Thrie-Beam to W Beam Guardrail Barrier Transition is manufactured with a durable, corrosion resistant galvanized steel that is designed to withstand years of use in a variety of environments.

1. Anchor Placement: Proper placement of anchor bolts or posts is crucial to ensure the stability and effectiveness of the transition. This may involve adjusting the spacing or alignment of anchors to accommodate the different dimensions of Thrie-Beam and W-Beam barriers.

2. Bracket Compatibility: Transition brackets are often used to connect the Thrie-Beam and W-Beam sections seamlessly. These brackets should be designed to securely attach both types of barriers while maintaining structural integrity.

3. Rail Height Adjustment: Thrie-Beam and W-Beam barriers may have different heights, so adjustments may be necessary to ensure a smooth transition without gaps or abrupt changes in height that could compromise safety.

4. End Treatment: Proper end treatment is essential to absorb and dissipate impact energy in the event of a collision. Transitioning from Thrie-Beam to W-Beam may require specific end treatments or terminal sections designed to accommodate the different barrier types.

5. Alignment: Ensuring proper alignment of the transition section is critical for maintaining the continuity of the barrier system. Misalignment could create gaps or unevenness that pose hazards to motorists.

6. Reflective Markings: Reflective markings and delineators should be installed to enhance the visibility of the transition, especially during low-light conditions or inclement weather.

7. Regular Inspection and Maintenance: Ongoing inspection and maintenance are necessary to identify any issues with the transition and address them promptly. This includes checking for damage, corrosion, or other signs of wear and tear that could compromise the effectiveness of the barrier system.
