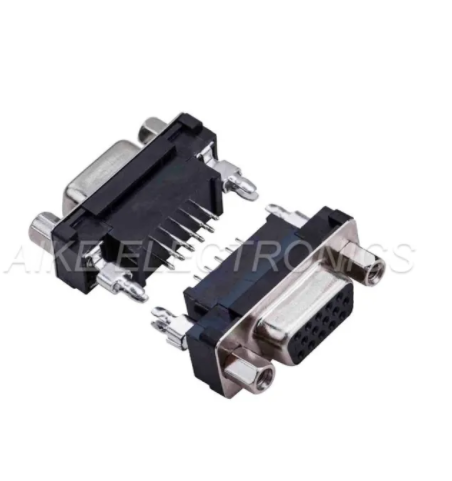

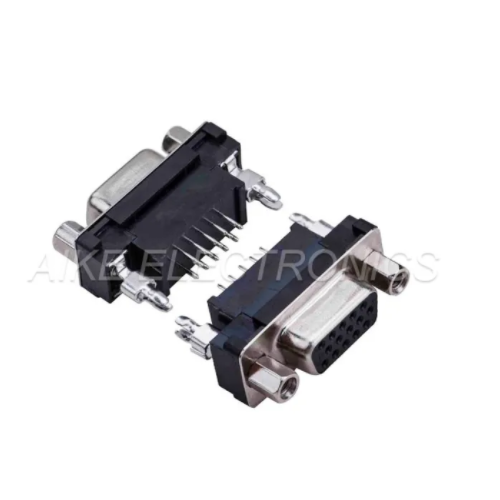

HDS 15 PIN 3 Rows Receptacle High Density Connector

A 3 row 15 pin female connector refers to an electrical connector with three rows of pins, and it has a total of 15 pins or contacts. These connectors are often part of the D-subminiature (D-sub) connector family, and they are used in a variety of applications for data and signal connectivity.

Product Description

D-SUB 3 Row 15 Pin Female Connector



A 3 row 15 pin female connector refers to an electrical connector with three rows of pins, and it has a total of 15 pins or contacts. These connectors are often part of the D-subminiature (D-sub) connector family, and they are used in a variety of applications for data and signal connectivity.

The 3 row 15 pin female high density connectors can be used:

1. Video/Graphics: In some cases, 15 pin D-sub connectors are used for video connections, such as VGA (Video Graphics Array) or similar analog video signals.

2. Data Communications: These connectors might be used in data communication applications, especially when more than 9 pins are required, such as for RS-422 or RS-485 serial communication standards.

3. Industrial Control: In industrial automation and control systems, 15 pin 3 row D-sub connectors can be used for various data and control signal connections.

4. Custom Applications: Depending on the specific requirements of a project or device, 15 pin D-sub high density connectors can be used in custom or specialized applications for signal transmission.


15 Pin 3 Row Connector Specification

Type HDS 15PIN, Female parts,180 degree, Stamp Contact, 3 rows, with rivet & screws
Contact No. 15PIN
Materials For housing can be PBT,LCP and so on
For shell normally can be Steel.
Colour White or Black  or Blue or Customized Color
Plating For Shell, Ni and Tin Plating
For Contact,Au,Ni,and Tin Plating
Plating Thickness For Shell, 50U',100U' or Higher
For Contact, 1U',3U'5U'15U',30U' or Higher
Both are depands on custoer request
Application Display Card, Monitor and Industrial etc. For more computerized equipment applications click here.
Package Normally Tray Package Or Customized Package
Delivery Time Usually 25-35 days after receiving the 30% deposit
Payment terms TT, L/C, DP or Negotiable
Note This part is only one sample for this series products, we can change the Construction and materials to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know.
