ZYQ series Mud gas separator(Poor Boy Degasser) is professional equipment to treat the gas invade mud. When the drilling mud result gas invade, the proportion of its weight and viscosity have a greater deviation not to meet the requirements of drilling.
Product Description

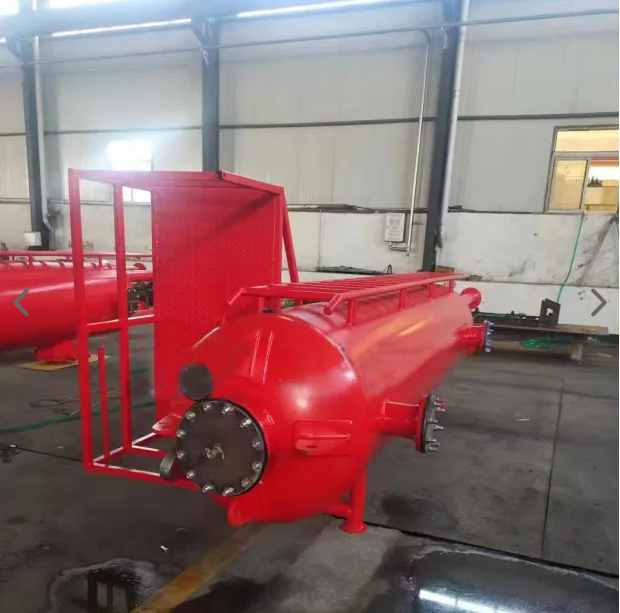

ZYQ series Mud gas separator(Poor Boy Degasser) is professional equipment to treat the gas invade mud. When the drilling mud result gas invade, the proportion of its weight and viscosity have a greater deviation not to meet the requirements of drilling. The serious situation is that would cause Chung well, and even blowout accident occurred, if not to treat it timely. ZYQ series Mud gas Separator combined with the Electric Ignition Device can be used to ensure the drilling process smooth. It is divided into the normal pressure Mud gas separator and pressure auto-control Mud gas separator, according to the pressure. Mud gas Separator is your best choice to prevent drilling mud invasion.
ZYQ series Mud gas separator Technical Parameters
| Model | ZYQ800 | ZYQ1000 | ZYQ1200 |
| Main body diameter | 800mm | 1000mm | 1200mm |
| Capacity | 180~260m3/h | 240~320m3/h | 260~380m3/h |
| Inlet pipe | 5" | 5" | 5" |
| Output pipe | 6" | 8" | 10" |
| Gas discharge pipe | 6" | 8" | 8" |
| Weight | 1600kg | 2000kg | 2000kg |
| Dimensions | 1900×1900×5700mm | 2000×2000×5860mm | 2200×2200×6634mm |
Liquid-Gas Separator is a mechanical device that is designed to separate liquid and gas from the fluid stream. It is commonly used in the oil and gas industry to remove liquid droplets from the natural gas stream, which is produced during oil and gas production. The device works by using gravity to separate the liquid droplets from the gas stream, which then flows out of the separator. The separated liquid is then drained out of the bottom of the separator. The Liquid-Gas Separator is an essential piece of equipment for production facilities to ensure the quality of the produced gas.
The Liquid-Gas Separator primarily serves the purpose of separating oil and gas to enhance quality, efficiency, and safety. The device separates the gas from the liquid, preventing the two from interfering with each other. It ensures that the gas that is produced is pure and free from the liquid and impurities. Having an efficient Liquid-Gas Separator ensures that the downstream equipment’s capacity and performance are optimized, leading to improved production.
Gas-liquid separators are used in different stages of the natural gas extraction process. The separator operates under high pressure, and, as such, it should be designed to withstand the high pressure in the system. Different types of Liquid-Gas Separators are designed to handle varying levels of gas and liquid flowrates. The basic design of the device consists of a vessel and an inlet and outlet, as well as other necessary components such as a distributor, demister, and control valves.
Oil and gas separators can be categorized into two groups, a low-pressure and high-pressure separator. Low-pressure separators can handle pressure of around 10 psi and are designed for liquid recovery. High-pressure separators can handle pressure of around 180 psi and are primarily used for gas purification. Both types of separators are critical in different stages of oil and gas production.
Natural Gas production has different stages, including exploration, drilling, and treatment. The treatment stage involves the removal of impurities such as water, sand, oil, and other contaminants. During the treatment process, the Liquid-Gas Separator is used to separate the gas from the liquid. The separator is designed to remove water and oil droplets from the gas stream to ensure that the pipeline is not damaged.
The oil and gas separator plays a significant role in ensuring safety during production. The separator removes liquid droplets, which could be hazardous if they come into contact with other equipment. The separated droplets are periodically drained out of the separator to prevent their accumulation, which could lead to damage to the system. The separators are also equipped with safety valves that help prevent system failure and accidents.
In conclusion, the Liquid-Gas Separator is an essential piece of equipment in the oil and gas industry. The device is designed to separate liquid droplets from the gas stream, which is produced during oil and gas production. The separator ensures that the gas that is produced is pure and free from any impurities. Having efficient separators ensures that downstream equipment capacity and performance are optimized, leading to improved production efficiency. The separator also plays a vital role in ensuring safety during production. The Liquid-Gas Separator is a critical instrument for any oil and gas production facility.
