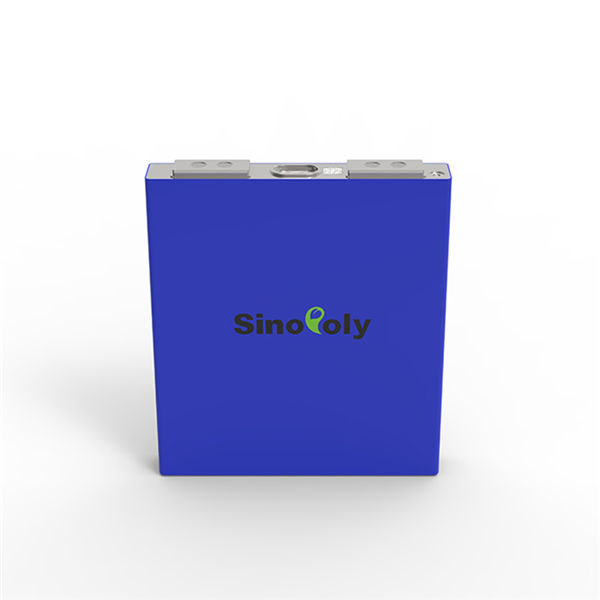

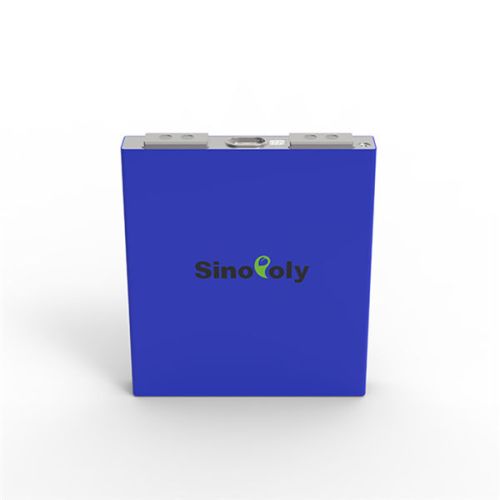

Prismatic Aluminum Lithium Battery Cell 50Ah
Prismatic Aluminum Lithium Battery Cell 50Ah
Product Description
Prismatic Aluminum Lithium Battery Cell 50Ah for ESS&Power use
|
Size(L: W: H) |
L:140.2±0.5mm*W:24±0.5mm*H:163±0.5mm |
|
Nominal capacity |
50Ah |
|
Nominal voltage |
3.2V |
|
Weight |
1.1Kg±0.1g |
|
Maximum charging voltage |
3.65V (0℃≤T≤55℃) |
|
Minimum discharge voltage |
2.5V (0℃＜T≤60℃) |
|
2.0V (-20℃≤T≤0℃) |
|
|
Energy density |
≥154Wh/kg (Mass energy density) |
|
Rated power |
160W |
|
AC internal resistance |
＜0.4mΩ (Fresh cell) |
|
Cycle Life |
≥5000 (0.33C/0.33C,80%DOD@25℃) |
|
Standard discharge current |
1C |
|
Maximum continuous discharge current |
1C |
|
Max.charge current |
1C |
Aluminum lithium battery cells are being researched and developed for various applications, including electric vehicles, portable electronics, and grid storage systems. The use of aluminum helps increase the conductivity of the battery while lithium enhances its energy storage capabilities.
For more details please contact Sinopoly
