Home > Electrical Equipment & Supplies > Batteries > Long Cycle Life LFP280Ah

Long Cycle Life LFP280Ah

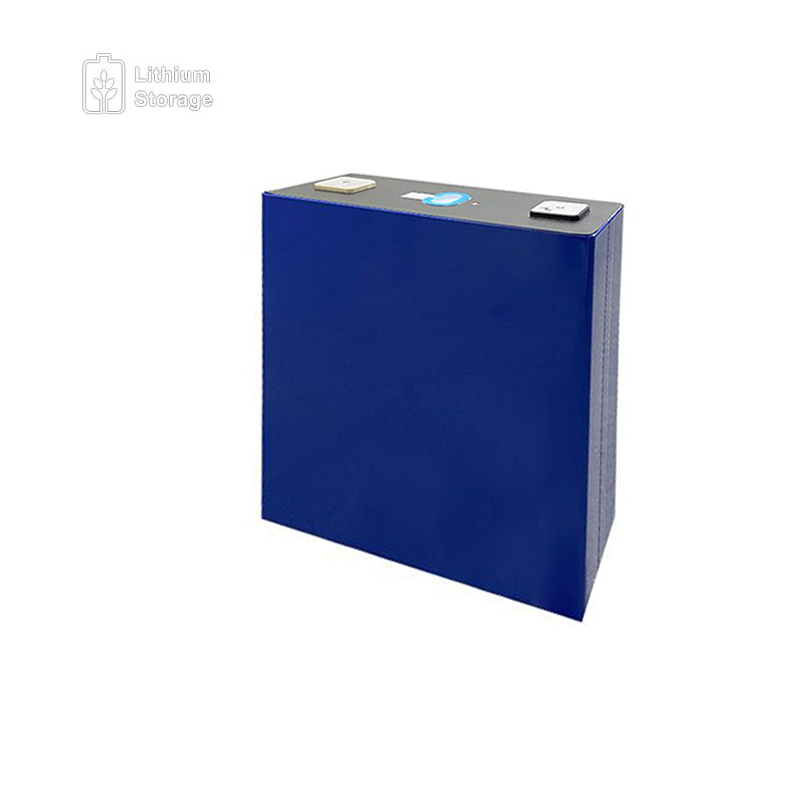

280Ah Lifepo4 Battery Supplier provides automotive industry customers with 280Ah Cell customized wholesale service. 280Ah Lifepo4 Battery is prismatic lithium iron phosphate battery, Weight 5.34±0.15kg, Cycle life ≥6000 times.

Product Description

Long Cycle Life LFP280AhLFP 3.2V 280Ah Lifepo4 Lithium ion Battery





3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery



LITHIUM STORAGE can offer different terminal solution3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery

for cells with welding terminals, including screw terminals and Nut terminals. These solutions have passed the multiple inspection testing items such as drawing force, shear force and torque testing etc. and have been applied in the various electric vehicle and energy storage projects in the different countries.







3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery



No. Item Specification Note
1 Rated Capacity 280Ah @1C
2 Nominal Voltage 3.2V
3 Actual Voltage Range 2.5-3.65V
4 Rated Discharge Current ≤280A Typical Value=140A
5 Peak Discharge Current ≤560A @60s
6 Rated Charge Current ≤280A Typical Value=140A
7 Peak Charge Current ≤560A @60s
8 Operating Temperature Charge: 0℃~55℃
Discharge: -30℃~55℃

9 Storage Temperature ﹣30℃~60℃
10 Cell Dimensions

Thickness: mm

Length:173.93±0.3mm

Height: 204.59±0.5mm


11 Cathode Material LFP
12 Weight 5.34±0.15kg
13 Energy density 165Wh/kg 350Wh/L
14 Cycle life ≥6000 times @0.5C/0.5C 100%DOD
15 Terminal Welding/Screw terminal-Nut





      3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery       To suit the various connection demand from customers,

             it is available to support cells with screw terminals or nut

             terminals excepting welding terminals. The relevant torque

             is recommended for avoiding excessive force which can

             damage the terminal thread when the bolts are tight.
             For applied bolts, busbar, and tighten torque are shown

             in the table below.





Parameter table

Cell type Screw Terminals Nut Terminals Fasten torque Remark Standard busbar type Non-standard busbar type Current Capacity
LFP40Ah / M6*14 6N*m

Max repeated

terminal

screw times ≤3

BS1-LFP40A BS2-LFP40A 1C
LFP50Ah / M6*14 6N*m BS1-LFP50A BS2-LFP50A 1C
LFP100Ah / M6*14 6N*m BS1-LFP100A BS2-LFP100A 1C
LFP135Ah / M6*14 6N*m BS1-LFP135A BS2-LFP135A 1C
LFP205Ah M6*16 Bolt M6*18 6N*m BS1-LFP205A BS2-LFP205A 1C
LFP280Ah M6*16 Bolt M6*18 6N*m BS1-LFP280A BS2-LFP280A 1C
LFP280Ah long cycle M6*16 Bolt M6*18 6N*m BS1-LFP280A BS2-LFP280A 1C
LFP302Ah M6*16 Bolt M6*18 6N*m BS1-LFP302A BS2-LFP302A 1C
NCM102Ah / M6*18 6N*m BS1-NCM102A BS2-NCM102A 1C
NCM177Ah / M6*18 6N*m BS1-NCM177A BS2-NCM177A 1C




3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery



This product has passed the following certifications:

          3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery



Cell type Quality Management System Products  Certification
 ISO-9001   IATF16949   ISO-14001   ISO-45001  GB/T 31485-2015 GB/T 31486-2015 GB/T 31484-2015  IEC62619   UL1642   UL9540   UL1973   MSDS   UN38.3   BIS   JET
LFP40Ah / / / / / /
LFP50Ah / /
LFP100Ah / / / / /
LFP135Ah / / / / /
LFP205Ah / / / / / /
LFP280Ah / / / / / /
LFP280Ah long cycle / / /
LFP302Ah / / / / / /
NCM102Ah / / / / / /
NCM177Ah   √ √    √ / / /  /    √ √

/

/



                                         3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery





3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery



3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery

                                                                    01                                                                                                                                              02

                                   Carton for air transportation and                                                                                                    Meeting the UN38.3 package
                                 plywood case for sea transportation                                                                                                standard for dangerous goods







3.2V LFP280Ah long cycle Lifepo4 Lithium ion Battery



The global economy is undergoing a transition from carbon-intensive energy resources to low-carbon energy resources, switching from fossil fuels with harm to the environment to cleaner and alternative renewable energy sources. Lithium ion batteries as the most favorable electrochemical energy storage system are widely used in many fields due to high energy density, excellent self-discharging rate, high operation voltage, long cycle life, and no memory effect. The application fields include not limiting trucks, cars, buses, golf carts, AGV, material handling equipment(forklifts), as the driving force, and various energy storage systems.







Lithium Storage Co.,Ltd



Add.:  No.9 East Mozhou Road, Jiangning District, 211111, Nanjing City, China

Tel. :  +86 025 8773 9887

E-mail: admin@lithiumstoragebattery.com



Your professional lithium battery power solution provider.



280Ah LiFePO4 Batteries from LITHIUM STORAGE is a prismatic lithium iron phosphate battery. Three types of terminals are available to meet multiple installment demands, including welding terminals, screw terminals, and nut terminals.

LFP280 LiFePO4 batteries have a high capacity with excellent performance, and long cycle life can reach cycle life 6000times, and increased safety factor. It is to be widely applied for energy storage system (ESS) projects. They are high capacity 3.2V power lithium- ion batteries for RV/solar system/yacht/golf cart and car storage.
