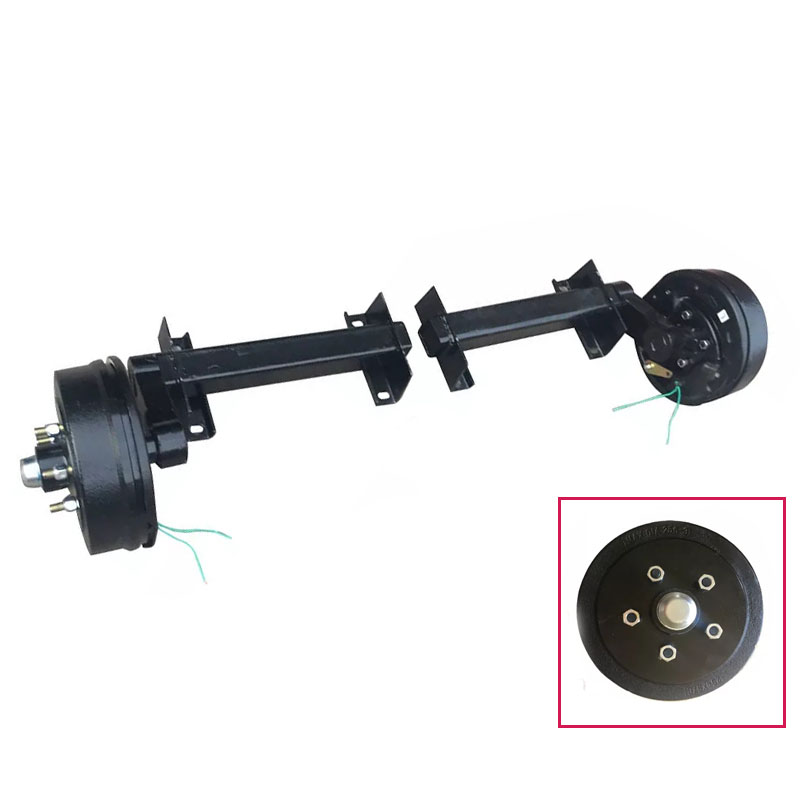

3500lbs rubber torsion axles galvanized

Capacity	Outer Tube Size (mm)	Brake	Bearing	P.C.D	Length
750 KG	60x60	Mechanical Brake	L44649	5x114.3	Custom Length
1000 KG	70x70	Mechanical Brake	L68149/11-L44649/10	5x114.3	Custom Length
1200 KG	70x70	Mechanical Brake	L68149/11-L44649/10	5x114.3	Custom Length
1500 KG	80x80	Mechanical Brake	L68149/11-L44649/10	5x114.3 or 6x139.7	Custom Length
2000 KG	90x90	Mechanical Brake	L68149/11-L44649/10	5x114.3 or 6x139.7	Custom Length

The rubber torsion axle system is designed to be flexibility and can be bolted to a bracket that is fixed on to the chassis. Rubber torsion axle can be u-bolted onto trailer chassis rails, which provides optimum tow-ball weight under situations where the load centre is varied.Torsion trailer axle system is extensively used in a range of trailers such as boat trailer, RV trailer, camper trailer, car trailer and so on.

1. torsion axle system is designed to be flexibility and can be bolted to a bracket that is fixed on to the chassis. They can be u-bolted onto boat trailer chassis rails to allow, which provides optimum tow-ball weight under situations where the load centre is varied.

2.Torsion axle beam can be power coating or hot dip galvanized surface finish to prevent corrosion.

3.The spindles have high bending strength as they were made by alloy steel material and treat with fire treatment after solid forging.

4.Bearings used on our axle are imported or Chinese famous brand, which is wearable and serve long time.

5.Ductile cast iron wheel hub and the gray cast iron are all produced according the international standard. they has the ability of high loading ,wearable ,heat-resistant, and hardly deformed.6. Mechanical disc brake in included.
