BELT DRIVEN SCREW AIR COMPRESSOR

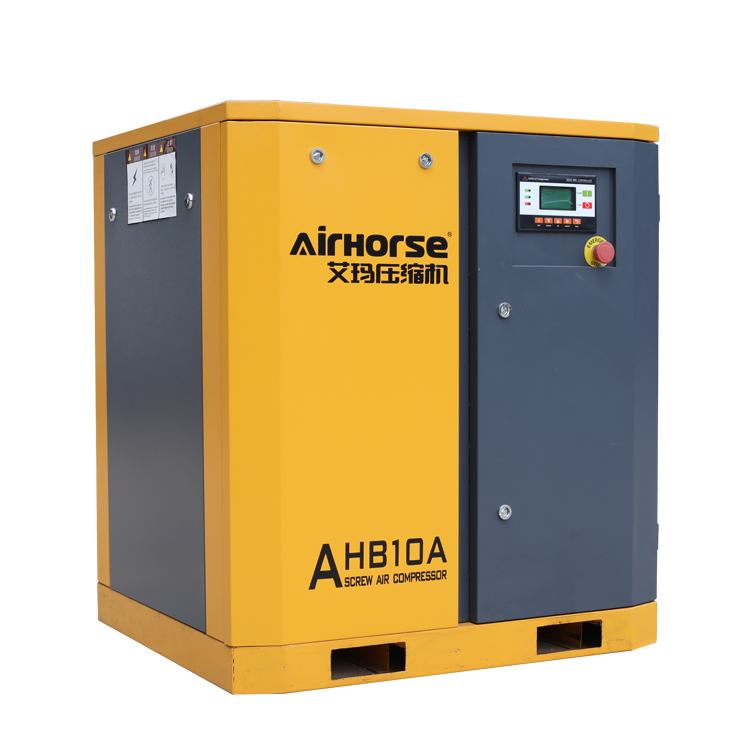

AirHorse Screw Air Compressor (Belt driven)

Model

AHB-5A

AHB-7A

AHB-10A

AHB-15A

AHB-20A

Free air deliver/Discharge pressure
(m³/min/Mpa)

0.55/0.8

0.85/0.7
0.75/0.8

1.2/0.7
1.1/0.8
0.9/1.0
0.7/1.2

1.6/0.7
1.5/0.8
1.3/1.0
1.1/1.2

2.5/0.7
2.3/0.8
2.1/1.0
1.9/1.2

Free air deliver
/Discharge pressure
(CFM/PSI)

20/116

30/102
27/116

42/102
39116
32/145
25/174

57/102
53/116
46/145
39/174

88/102
81/116
74/145
67/174

Compression stage

Single stage

Ambient temprerature

-5~+45℃

Cooling mode

Air cooling

Discharge temperature (℃)

Ambient temperature+15℃

Lubricant  (L)

3

3.7

3.7

10

10

Noise Level   (Db)

62±2

64±2

Drive method

Belt driven

Electricity (V/ph/Hz)

380/3/50

Motor power(KW/HP)

4/5.5

5.5/7.5

7.5/10

11/15

15/20

Starting method

Direct starting

Y-△Starter (Star delta starting)

Dimension L*W*H (mm)

920*600*690

860*730*960

940*800*1075

Net Weight (kg)

136

170

210

260

305

Air outlet diameter(inch/mm)

3/4’’

1/2’’

1½’’
