Chicago Plenum Flexible Metal Tubing

Chicago Plenum Flexible Metal Tubing

Product Description

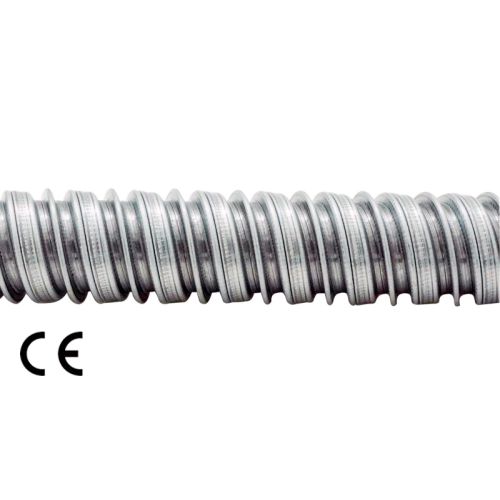

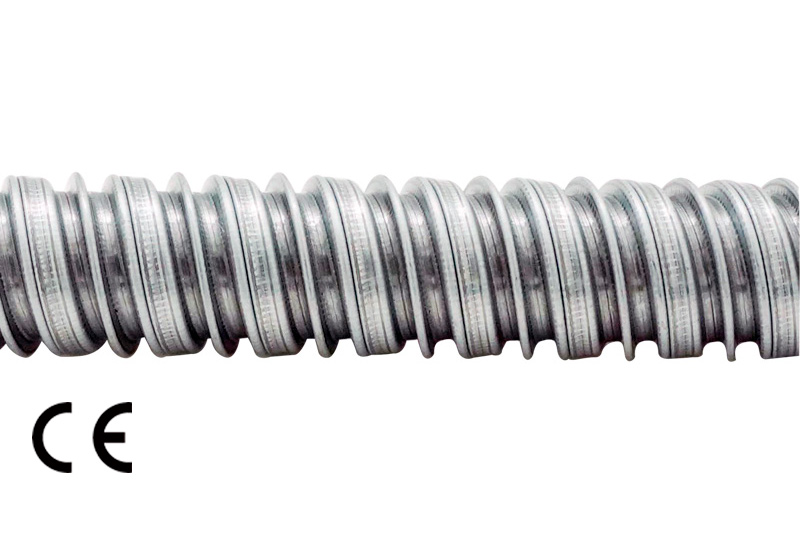

Chicago Plenum Metal Flexible Conduit, PFMT series, is made of RoHS-compliant and corrosion-resistant galvanized steel strip, coiled in a double-lock form. The tight double-lock structure allows the flexible conduit to achieve air-tight and liquid-tight protection without plastic coating. Moreover, its weight is only 60% of that of the Flexible Metal Conduit (FMC). Additionally, it offers the functionality of directional installation.

The type of conduit is installed in the ventilation duct space above the ceiling or in equipment or devices mounted on raised floors. This series of airtight metal flexible conduits, when paired with sealed connectors, can be employed to protect electrical circuits. It creates a comprehensive airtight condition with the equipment or devices, preventing air conditioning leakage in the active space and enhancing energy efficiency. Additionally, in the event of a fire caused by electrical circuit faults, it effectively blocks the dispersion of toxic gases produced when wires burn into the environment. During the activation of the fire sprinkler system, it also prevents water vapor from entering the conduit, avoiding the escalation of the disaster and enhancing electrical safety. This series is suitable for protecting circuits with a voltage of less than 1KV, such as indoor lighting equipment, and other equipment or circuit protection in distribution systems.

Features

Material:Galvanized Steel

Temperature Range : -50℃~+350℃

IP Rating : IP 66

Flexibility : Medium

RoHS Compliance : Yes

Certificate : CE

Flexible Metal Conduit Available Size



型号/Type 英寸/INCH I.D.内径/(mm) O.D.外径/(mm) Bending Radius(mm) Fittings Package / Roll (ft/m)
PFMT-3/8 3/8 12.29-12.80 14.22-16.87 255 S271 100 / 30.5
PFMT-1/2 1/2 15.75-16.26 18.80-20.32 318 S272 100 / 30.5
PFMT-3/4 3/4 20.83-21.34 23.88-25.40 445 S273 100 / 30.5



Flexible Metal Conduit Price

There is no exact price for flexible metal conduit.This is due to the different types and sizes of conduit. In addition, electricians charge differently than for the installation of electrical conduit. There are many types of electrical conduit
